Ø250mm TC 24V
Item code: 13 0650
£0.00
(Suggested Retail Price)
| Sparepart for | Value |
|---|---|
| Main products > Thrusters > DC > ERL | ERL170/250TC-48V ERL170/250TC-24V |
| Main products > Thrusters > DC > ERV | ERV170/250TC-24V ERV170/250TC-48V |
| Main products > Thrusters > DC > SR_SRV_SRL | SRV210/250TCOBS SRL170/250TC SRV210/250TC SRV170/250TC |
-
DNV AiP Thruster retract composite housing SR Ø250 and Ø300
Conformity CertificateEnglishpdf
Retract mechanical
SP104776C
13 0650
02.06.2026
Guide to navigating spare parts
Below you will see the top-level assembly of spare part groupings available to you. If you desire a component within the presented assembly group, click on the name tag below the image to be directed to a detailed spare parts list for that assembly group. If no additional spare parts are available, it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
2
Cable actuator
Item code: 150050
Quantity: 2
PHOTO NOT AVAILABLE
3
Cylinder head cap screw
Quantity: 4
M4x12 Unbraco
PHOTO NOT AVAILABLE
5
Sensor cable SR
Item code: 150055
Quantity: 1
PHOTO NOT AVAILABLE
7
Hex lock nut
Quantity: 1
DIN 985 - M4 x 0,7 A4
PHOTO NOT AVAILABLE
8
Hex socket set screw flat point
Quantity: 1
DIN 913 - M4 x 20 A4
PHOTO NOT AVAILABLE
9
Hex socket flat countersunk head screw
Quantity: 2
DIN 7991 - M4x30 A4

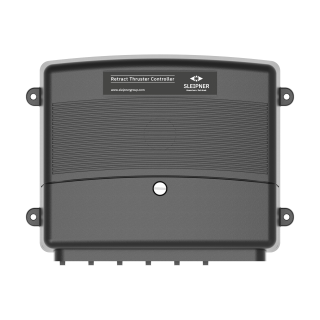

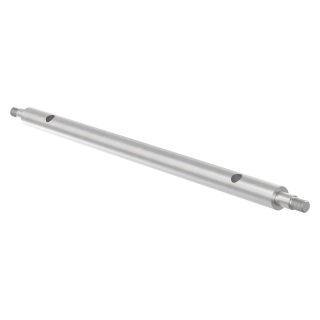

Kits
-
SM143716 20 1180 A
-
SM170663 SM170663
-
SM175313 SM175313
-

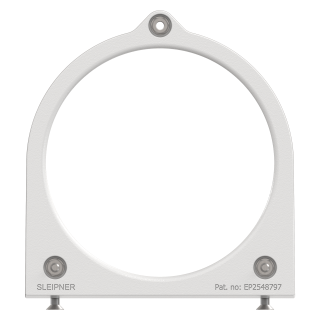

Retract ring support kit 250mmSM900585 6 2143-OBS
-
SM901300B 10 2076
-
SM901301 10 2077
-
SM901479 140100

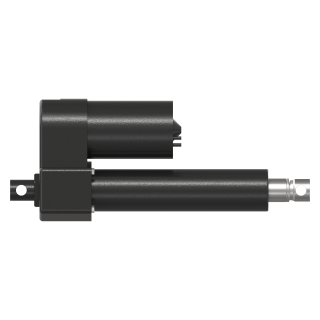

1 Actuator kit 24 v Retract 185-250mm
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
2
Locking bolt
Item code: 140003
Quantity: 1
PHOTO NOT AVAILABLE
3
Split pin
Quantity: 2
ISO 1234 - 3,2 x 20 A4
PHOTO NOT AVAILABLE
5
Flat washer without chamfer
Quantity: 1
DIN 125 - A 13 A4
PHOTO NOT AVAILABLE
6
Grommet kit
Item code: SM167587
Quantity: 1
2 Adapter water proof SRV
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Adaptor for seals SRV sensor
Item code: SM-131070
Quantity: 1
PHOTO NOT AVAILABLE
2
O-ring Ø14x3mm
Quantity: 1
--
PHOTO NOT AVAILABLE
3
Composite shaft for SRV sensor
Item code: SM-131071
Quantity: 1
PHOTO NOT AVAILABLE
4
O-ring Ø18x3mm
Quantity: 1
--
PHOTO NOT AVAILABLE
6
DIN 125 - A 4,3
Quantity: 2
Flat Washer
PHOTO NOT AVAILABLE
7
ISO 7045 - M4 x 40
Quantity: 2
Screw
PHOTO NOT AVAILABLE
8
ISO 7045 - M4 x 55
Quantity: 2
Screw

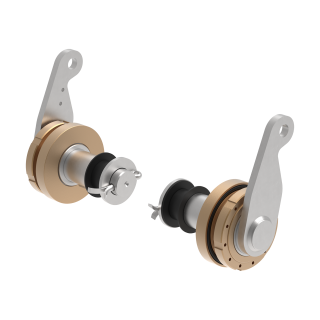

3 Shaft kit horizontal SRV130..210
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Stuffing box
Item code: SM-123053
Quantity: 2
PHOTO NOT AVAILABLE
2
Lifting arm complete PS
Item code: 140027
Quantity: 1
PHOTO NOT AVAILABLE
3
Lock nut
Quantity: 2
M64
PHOTO NOT AVAILABLE
4
O-ring
Quantity: 2
DIN 3771 - 72,62 x 3,53
PHOTO NOT AVAILABLE
5
O-ring
Quantity: 2
DIN 3771 - 48,9 x 2,62
PHOTO NOT AVAILABLE
6
Thrust washer
Quantity: 4
Ø48-Ø28 H=1,5
PHOTO NOT AVAILABLE
7
Flat washer without chamfer
Quantity: 2
DIN 125 - A 29
PHOTO NOT AVAILABLE
8
Split pin
Quantity: 1
ISO 1234 - 3,2 x 12
PHOTO NOT AVAILABLE
9
Split pin
Quantity: 2
ISO 1234 - 6,3 x 44
PHOTO NOT AVAILABLE
10
Sleeve bearing
Item code: 140019
Quantity: 2
PHOTO NOT AVAILABLE
11
Wype Ring
Item code: 140030
Quantity: 2
PHOTO NOT AVAILABLE
12
Turn ring
Item code: 6 2140
Quantity: 2
PHOTO NOT AVAILABLE
13
Sleeve bearing
Item code: 140060
Quantity: 2
PHOTO NOT AVAILABLE
15
Split pin
Quantity: 2
ISO 1234 - 3,2 x 20

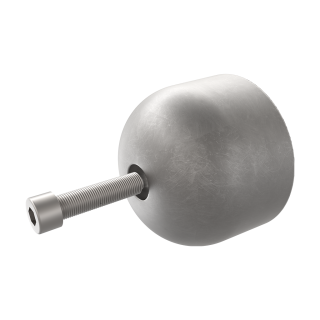

4 Anode kit, aluminium aloy (Al-Zn-In)
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Anode - aluminium
Quantity: 1
--
PHOTO NOT AVAILABLE
2
Hex socket cap screw
Quantity: 1
DIN 912 - M6 x 30

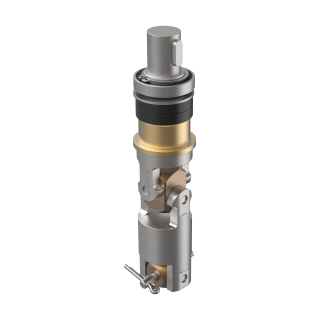

5 Retract drive shaft kit
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Retaining ring for shaft
Quantity: 1
DIN 471 - 25 x 1,2
PHOTO NOT AVAILABLE
2
Deep groove ball bearings single row with two RS1 seals
Quantity: 1
SKF 2RS1W 61805-2RS1
PHOTO NOT AVAILABLE
3
Spring Retaining Ring
Quantity: 1
DIN 472 - 35 x 1,5
PHOTO NOT AVAILABLE
4
Rotary lip seal
Quantity: 2
25 x 35 x 7
PHOTO NOT AVAILABLE
5
Bearing Sintered
Quantity: 1
Ø25xØ32xL20
PHOTO NOT AVAILABLE
6
Parallel Key
Quantity: 1
DIN 6885 - A 6 x 6 x 16
PHOTO NOT AVAILABLE
7
Flexible drive shaft
Quantity: 1
250 mm
PHOTO NOT AVAILABLE
8
Locking pin
Quantity: 1
Ø6 L45,5
PHOTO NOT AVAILABLE
9
Split Pin
Quantity: 1
DIN EN ISO 1234 - 3,2x12

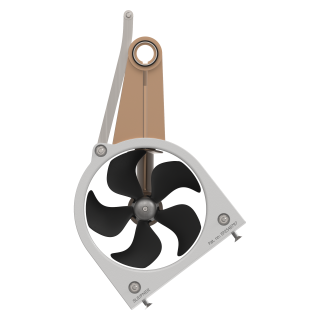

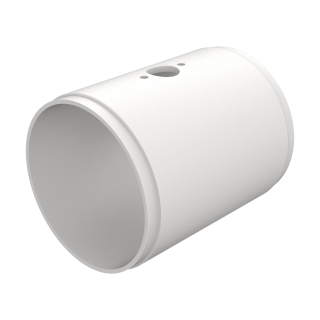

6 Tunnel kit retract Ø250mm TC, complete
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
2
Thrust washer
Quantity: 4
Ø10 x 18 x 1mm
PHOTO NOT AVAILABLE
3

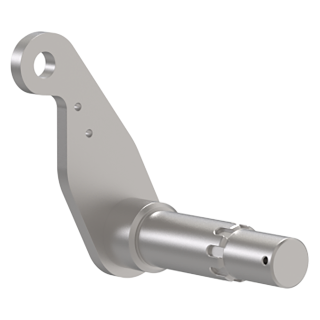

Lifting rod
Item code: 140007
Quantity: 1
PHOTO NOT AVAILABLE
4
Hex head screws
Quantity: 2
DIN 933 - M10 x 20
PHOTO NOT AVAILABLE
5
Sleeve bearing
Item code: 140024
Quantity: 2
PHOTO NOT AVAILABLE
6
Split pin
Quantity: 2
ISO 1234 - 3,2 x 20
PHOTO NOT AVAILABLE
7
Split pin
Quantity: 2
ISO 1234 - 6,3 x 44
PHOTO NOT AVAILABLE
8
Wype Ring
Item code: 140030
Quantity: 2
PHOTO NOT AVAILABLE
9
O-ring
Quantity: 2
DIN 3771 - 48,9 x 2,62
PHOTO NOT AVAILABLE
10
Turn ring
Item code: 6 2140
Quantity: 2
PHOTO NOT AVAILABLE
14
Tunnel bracket
Item code: 140010
Quantity: 1
Kits
-
SM143716 20 1180 A
-
SM900585A 6 2143

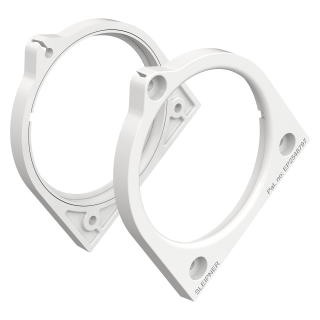

7 Retract Twist ring support kit
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
3
DIN 934 - M10
Quantity: 8
Hex nut
PHOTO NOT AVAILABLE
4
DIN 7991 - M10x70 A4
Quantity: 4
Hex socket flat countersunk head screw
PHOTO NOT AVAILABLE
5
Sliding band
Item code: 140151
Quantity: 2
-1.png)
PHOTO NOT AVAILABLE
7
DIN 125 - A 10,5
Quantity: 6
Flat washer without chamfer
PHOTO NOT AVAILABLE
8
DIN 985 - M10 x 1,5
Quantity: 6
Hex lock nut
PHOTO NOT AVAILABLE
9
ISO 1234 - 3,2 x 20
Quantity: 4
Split pin
8 Gearleg SRV170/210 replacement kit
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Mechanical sealing Ø35
Quantity: 1
--
PHOTO NOT AVAILABLE
2
Bushing for drive pins
Quantity: 1
--
PHOTO NOT AVAILABLE
3
DIN 3771 - 43,7 x 3,55 - NBR
Quantity: 1
O-ring
Kits
-
SM143716 20 1180 A
9 Joint lower kit SRV130/170/210
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Split pin
Quantity: 1
ISO 1234 - 3,2 x 12
PHOTO NOT AVAILABLE
2
Locking pin
Quantity: 1
Ø6 L45,5
PHOTO NOT AVAILABLE
3
Drive shaft lower link
Quantity: 1
PHOTO NOT AVAILABLE
4
Mechanical sealing Ø35
Quantity: 1
PHOTO NOT AVAILABLE
5
Bushing for drive pins
Quantity: 1

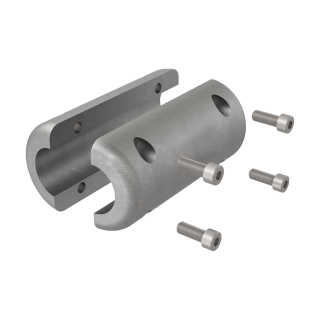

10 Anode rod for SRV thrusters
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
DIN 934 - M4
Quantity: 4
Hex nut
PHOTO NOT AVAILABLE
2
Anode SRV
Quantity: 1
Anode SRV
PHOTO NOT AVAILABLE
3
Anode SRV
Quantity: 1
Anode SRV
PHOTO NOT AVAILABLE
4
DIN 912 - M4 x 12
Quantity: 4
Cylinder head cap screw

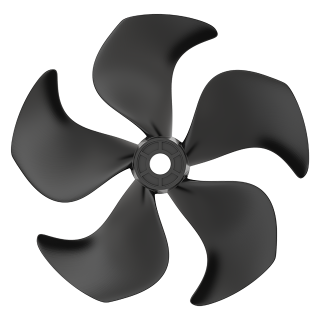

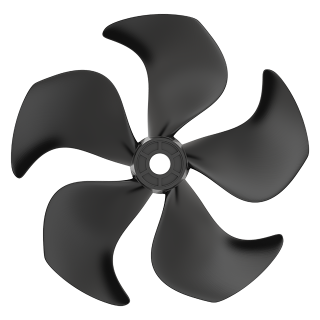

11 Gearleg SE170/210
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
Kits
-
SM143716 20 1180 A
12 Gearleg SE170/210 w/out propeller
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Shaft seal
Quantity: 1
DIN 3760 - AS - 22 x 40 x 7 - NBR - Carbon Steel
PHOTO NOT AVAILABLE
2
Bolt
Quantity: 2
DIN 912 - M10 x 50
PHOTO NOT AVAILABLE
3
Lock washer
Quantity: 2
DIN 128 - A10
PHOTO NOT AVAILABLE
4
Washer
Quantity: 2
DIN 125 - A 10,5
PHOTO NOT AVAILABLE
6
Drive pin
Quantity: 2
ISO 8734 - 8 x 37
PHOTO NOT AVAILABLE
7
Washer for propeller
Quantity: 2
DIN 125 - A 17
PHOTO NOT AVAILABLE
8
Nut for propeller
Quantity: 2
DIN 985 - M16x2
Kits
-
SM143716 20 1180 A
