Accessories for retract

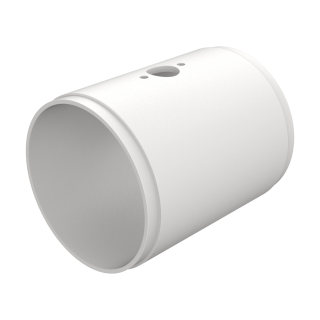

Tunnel kit retract Ø250mm TC, complete
Item code: SM175313
| Sparepart for | Value |
|---|---|
| Accessories, components and spare parts > For thrusters only > Mechanical retract assemblies | 13 0650 |
| Main products > Thrusters > DC > SR_SRV_SRL | SRLP170/250TC SRVP170/250TC SRVP210/250TCOBS |
Tunnel kit retract Ø250mm TC, complete
Guide to navigating spare parts
Below you will see the top-level assembly of spare part groupings available to you. If you desire a component within the presented assembly group, click on the name tag below the image to be directed to a detailed spare parts list for that assembly group. If no additional spare parts are available, it means that the current assembly group must be purchased as a whole due to service or installation requirements.
Thrust washer

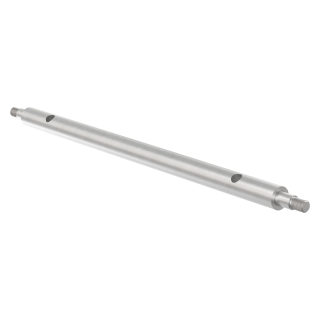

Lifting rod
Hex head screws
Sleeve bearing
Split pin
Split pin
Wype Ring
O-ring

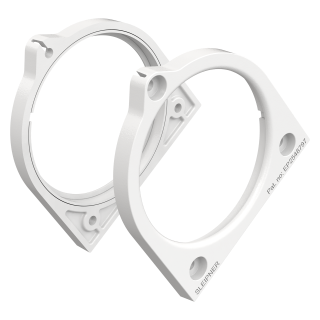

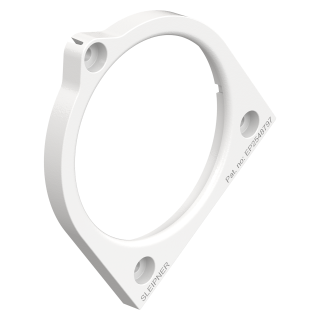

Turn ring
Tunnel bracket

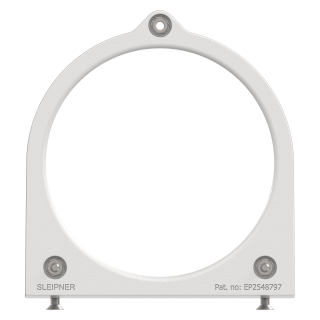

1 Retract ring support kit 250mm
DIN 934 - M10
DIN 7991 - M10 x 70 A4
Sliding band
-1.png)
DIN 125 - A 10,5
DIN 985 - M10 x 1,5
ISO 1234 - 3,2 x 20
2 Gearleg SRV170/210 replacement kit
Mechanical sealing Ø35
Bushing for drive pins
DIN 3771 - 43,7 x 3,55 - NBR
3 Joint lower kit SRV130/170/210
Split pin
Locking pin
Drive shaft lower link
Mechanical sealing Ø35
Bushing for drive pins

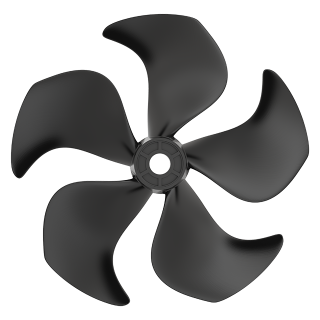

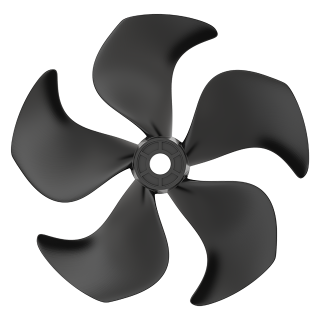

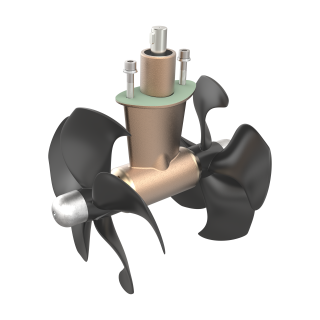

4 Gearleg SE170/210
5 Gearleg SE170/210 w/out propeller
Shaft seal
Bolt
Lock washer
Washer
Drive pin
Washer for propeller
Nut for propeller

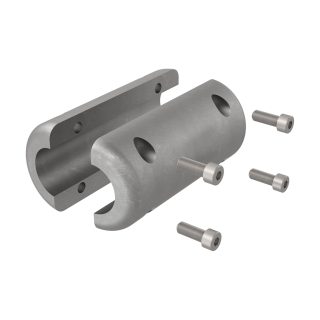

6 Anode kit, aluminium aloy (Al-Zn-In)

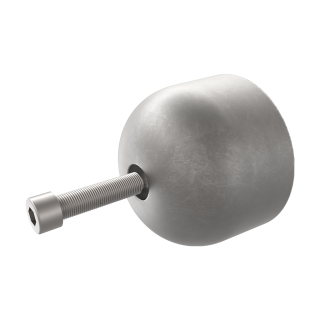

Alu anode
Bolt
Disclaimer
Sleipner warranties the original spare parts supplied only. The installer alone has responsibility for the installation of the spare parts. Do not attempt to fit replacement parts unless you are competent. If the spare part is fitted incorrectly, Sleipner Group will not be liable for any damage resulting.
The information given in the document was correct at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifications without notice. Consequently, Sleipner Group cannot accept liability for any possible differences between product and document.
-
