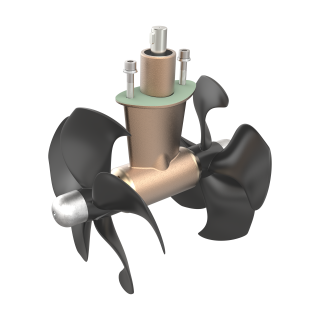

SH420 tunnel thruster hydraulic Ø386 U29
420kg thrust, 29cm³
-
S-LINK™
S-Link™ is a CAN-based control system used for communication between Sleipner products installed on a vessel.
- Compact and waterproof plugs
- Keyed and color-coded connectors to ensure correct and easy installation
- Different cable lengths, extenders and T-connectors makes the system scalable and flexible to install
-
Q-PROP™
The Q-PROP™ has measured noise reductions of up to 75% in controlled environments. The five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust power.
- The expected noise reduction in average installations: 20-40%
- Upgrade kits are available for most Sleipner thruster models with special adaptors
-
PRO™
A PRO™ thruster system enables you to apply only the necessary power to complete your maneuver. The variable speed control eliminates the noise associated with standard on/off thrusters.
The system also includes a practical hold-function. In a dual system (bow and stern) a single press of a button will keep you alongside the docks - making docking truly a one-person job.
Speed controlled thrusters are the best choice for joystick interaction. -
FLEXIBLE INSTALLATION
Sleipner offers installation flexibility to work with the space you have. Our thruster models allow installation at any angle on the tunnel, tailored to fit any space available in your vessel.
-
GRAVITY FEED LUBRICATION
The thruster gearleg is supplied with oil from a separate reservoir above the waterline to monitor oil levels.
-
FLEXIBLE COUPLING
Flexible coupling protects the product’s driveline by compensating for minor misalignments between the shafts of the thruster motor and gearleg.
-
TWIN COUNTER-ROTATING PROPELLERS
Two counter-rotating propellers offer the most thrust at a good performance ratio in a minimal tunnel diameter. This system is used in our larger thrusters for maximum power. Our twin-counter thruster range is the favorite among leading boatbuilders in high-end yachts.
Item code: SH420/386TC-U29
SH420 is a powerful thruster with 420 kg continuous thrust, suitable for boats between 75-110 feet/ 18-33 meters. It can be mounted as a bow or stern thruster.
Its compact and efficient design ensures maximum power and minimal noise and vibrations, providing smooth and comfortable boat maneuvering.
A remote control is a popular accessory. See some of the important product and safety features below.
Sleipner offers a wide range of hydraulic thrusters for installation in tunnels. These models are designed for larger recreational and commercial boats with a power range of 100-1400 kg, and can be mounted in both the bow and stern.
To ensure that all hydraulic components are compatible and maintain the same high quality, Sleipner offers complete hydraulic systems with guaranteed performance. All hydraulic thruster systems are delivered ready for use to provide a straightforward solution and the highest degree of quality assurance.
Hydraulic tank
A thruster will usually be the most demanding consumer among the hydraulic parts on board. Sleipner's hydraulic system is specially designed for ultimate flexibility to support all other hydraulic parts on board.
- Tank in powder-coated stainless steel
- Soft mounting points to avoid structural noise from floor-mounted tanks
- Internal splash plate that helps remove air from the oil
- Sloping bottom in the tank with drain plug at the lowest point in floor-mounted tanks
- All internal hydraulic connections on the tank come pre-installed
- All internal electrical connections for thrusters are pre-wired and ready with splice connectors
- Optional temperature-controlled water pump for oil cooler
- Flexible configuration
Sleipner's hydraulic systems offer significant savings in labor costs and space as practically every required component comes pre-installed and wired. Sleipner's systems only require external hydraulic and electrical connections (which can only be done on board), saving time and money for the installer. A Sleipner system comes with all necessary drawings, installation manuals, system start-up manual, maintenance manuals, etc. to ensure easy and correct installation and a lifetime of reliability and easy service work.
Hydraulic pump
Sleipner's hydraulic thruster systems only use variable displacement piston pumps. They offer a high level of reliability, efficiency, and flexibility.
Benefits of a load sensing system
Load sensing means that the displacement of the pump is controlled by a pressure signal from the hydraulic control valves. The pump will then continuously sense whether more flow or pressure is needed for consumers and adjust the displacement accordingly. This means there is no need to constantly rely on electrical activation or pump large volumes of unused oil around the boat.
- Reliable and proven system
- Delivers only the flow and pressure actually needed at the time
- Load sensing control on the pump is more reliable than an electrical clutch
- Low heat development and energy loss
- Highly efficient piston pumps
- Low noise level in both drive and idle mode
- Spark-proof for installation in gasoline areas
Support
Sleipner's hydraulic systems only use hydraulic components from well-known manufacturers to ensure reliability and easy access to spare parts and support worldwide.
Properties
S-LINK™
S-Link™ is a CAN-based control system used for communication between Sleipner products installed on a vessel.
- Compact and waterproof plugs
- Keyed and color-coded connectors to ensure correct and easy installation
- Different cable lengths, extenders and T-connectors makes the system scalable and flexible to install
Q-PROP™
The Q-PROP™ has measured noise reductions of up to 75% in controlled environments. The five-bladed skew propeller reduces noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust power.
- The expected noise reduction in average installations: 20-40%
- Upgrade kits are available for most Sleipner thruster models with special adaptors
PRO™
A PRO™ thruster system enables you to apply only the necessary power to complete your maneuver. The variable speed control eliminates the noise associated with standard on/off thrusters.
The system also includes a practical hold-function. In a dual system (bow and stern) a single press of a button will keep you alongside the docks - making docking truly a one-person job.
Speed controlled thrusters are the best choice for joystick interaction.
FLEXIBLE INSTALLATION
Sleipner offers installation flexibility to work with the space you have. Our thruster models allow installation at any angle on the tunnel, tailored to fit any space available in your vessel.
GRAVITY FEED LUBRICATION
The thruster gearleg is supplied with oil from a separate reservoir above the waterline to monitor oil levels.
FLEXIBLE COUPLING
Flexible coupling protects the product’s driveline by compensating for minor misalignments between the shafts of the thruster motor and gearleg.
TWIN COUNTER-ROTATING PROPELLERS
Two counter-rotating propellers offer the most thrust at a good performance ratio in a minimal tunnel diameter. This system is used in our larger thrusters for maximum power. Our twin-counter thruster range is the favorite among leading boatbuilders in high-end yachts.
| Main power | Value |
|---|---|
| Power supply | Hydraulic |
| Alarms | Value |
|---|---|
| Alarm notification | Via the product's control device |
| Thrust ratings | Value |
|---|---|
| Heavy duty thrust, nominal | 380kg / 837lbs |
| Light duty thrust, nominal | 420kg / 925lbs |
| Features | Value |
|---|---|
| Q-Propeller | Yes |
| Twin Counter Rotating Propellers | Yes |
| Gravity Feed Lubrication | Yes |
| Variable Speed Control | Yes |
| S-Link | Yes |
| Flexible Coupling | Yes |
| Flexible Installation | Yes |
| Physical properties | Value |
|---|---|
| Thruster Series | SH-series |
| Motor description | U29 |

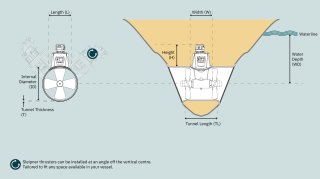

| Dimensions | Value |
|---|---|
| (H) Height | 315mm / 12in |
| (L) Length | 268mm / 10in |
| (W) Width | 268mm / 10in |
| (ID) Internal Diameter | 386mm / 15in |
| (WD min.) Minimum Water Depth | 580mm / 22in |
| (TL min.) Minimum Tunnel Length | 400mm / 15in |
| (TL) Recommended Tunnel Length | 480mm / 18in |
| (T min.) Minimum Tunnel Wall Thickness | 10mm / 0in |
| (T max.) Maximum Tunnel Wall Thickness | 15mm / 0in |

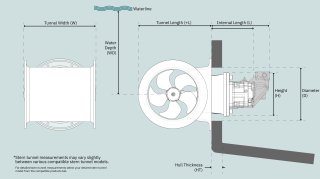

| Stern Thruster Dimensions | Value |
|---|---|
| H | 200mm / 7in |
| (L) Internal Length | 257mm / 10in |
| W | 550mm / 21in |
| (D) Diameter | 403mm / 15in |
| (WD) Stern Water Depth | 380mm / 14in |
| (HT) Maximum Hull Thickness | 54mm / 2in |
| Installation capability | Value |
|---|---|
| Bow Capability | Yes |
| Stern Capability | Yes |
| Tunnel Capability | Yes |
| Port specifications | Value |
|---|---|
| Port A/B | 3/4" BSP |
| Drain port | 1/4" BSP |
| Flow rates | Value |
|---|---|
| 60% Flow rate | 49.8L/min |
| 80% Flow rate | 57.6L/min |
| 100% Flow rate | 64.3L/min |
| Pressure rates | Value |
|---|---|
| 60% Pressure rate | 169Bar |
| 80% Pressure rate | 225Bar |
| 100% Pressure rate | 281Bar |
| Ideal vessel integration | Value |
|---|---|
| Typical vessel class | Commercial vessel, Motor boat, Sail boat |
| Typical vessel size | 22-35m / 72-114ft |
| Product weight | Value |
|---|---|
| Net weight | 46kg / 101lbs |
-
User Manual, SH Pro (SHP)
User ManualEnglishpdf -
STP.fil SH420-386TC-Uxx (simple version)
CAD FileEnglishstp -
XT.fil SH420-386TC-Uxx (simple version)
CAD FileEnglishx-t -
DNV Type Approval Tunnel thruster
Product Specification Sheets, Conformity CertificateEnglishpdf -
IGS.fil SH420-386TC-Uxx STERN (simple version)
CAD FileEnglishigs -
STP.fil SH420-386TC-Uxx STERN (simple version)
CAD FileEnglishstp -
Installation Manual, SH (SH420, SH550)
Installation ManualEnglishpdf -
PDF.fil SH420/386TC-U37 Hyd.tunnel thruster STERN - metadata
Technical drawingEnglishpdf -
Product specification sheet SH thrusters
Product Specification Sheets, Archived DocumentationEnglishpdf -
STP.fil Oil container for hydraulic (3D)
CAD FileEnglishstp
SH420 tunnel thruster hydraulic Ø386 U29

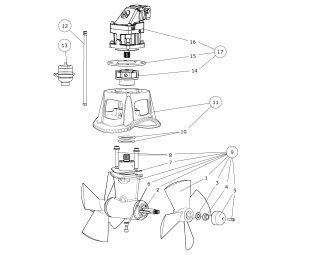

Guide to navigating spare parts
Below you will see the top-level assembly of spare part groupings available to you. If you desire a component within the presented assembly group, click on the name tag below the image to be directed to a detailed spare parts list for that assembly group. If no additional spare parts are available, it means that the current assembly group must be purchased as a whole due to service or installation requirements.
Propeller
Hyd. Motor options:
BA 32
Hyd. Motor assembly options:
1 Gearleg replacement SH550

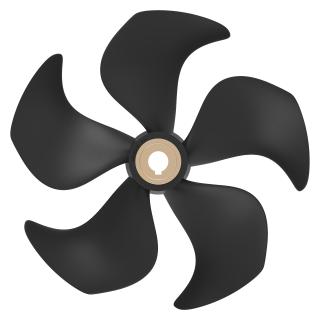

Q-propeller LH

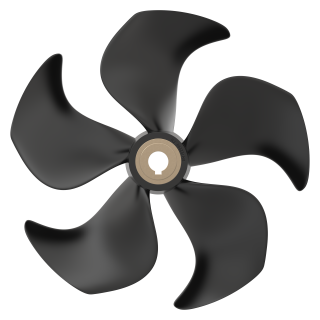

Q-propeller RH
Kits
-
SM902754 50 1180 A
2 Motor bracket SH550 PRO
Bracket

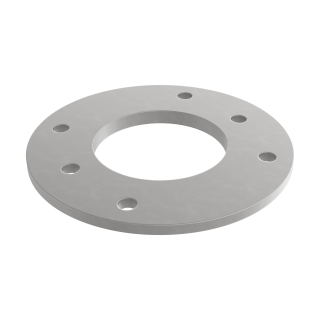

3 Hydraulic motor SP550 33cm³ gear motor
DIN 933 - M12 x 45
DIN 127 - A 12
DIN 933 - M12 x 35
Centaflex Hub, spline N1
Centa str.12,std.60
DIN 912 - M10 x 30

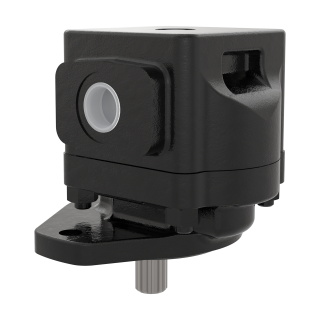

4 Hydraulic motor SP550 37cm³ gear motor
DIN 933 - M12 x 45
DIN 127 - A 12
DIN 933 - M12 x 35
Centaflex Hub, spline N1
Centa str.12,std.60
DIN 912 - M10 x 30
5 Hydraulic motor SH420 32cm³ Bent Axis
DIN 933 - M12 x 35
DIN 127 - A 12
Rexroth motor
DIN 912 - M10 x 30
Centa str.12,std.60
6 Gearleg SH550 w/out propeller
DIN 933 - M16 x 100
Split spring washer
Låsemutter hals
O-ring 64,6x2,4
DIN 3760 - A - 30 x 47 x 7 NBR Steel
Tetnings lokk
DIN 7991 - M3x8 A4
Hex lock nut
Disclaimer
Sleipner warranties the original spare parts supplied only. The installer alone has responsibility for the installation of the spare parts. Do not attempt to fit replacement parts unless you are competent. If the spare part is fitted incorrectly, Sleipner Group will not be liable for any damage resulting.
The information given in the document was correct at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifications without notice. Consequently, Sleipner Group cannot accept liability for any possible differences between product and document.
-
