Retract parts
Retract mechanical
Ø250mm T 24V
Item code: 13 0652
| Product weight | Value |
|---|---|
| Net weight | 63.5kg / 139.99lbs |
| Sparepart for | Value |
|---|---|
| Main products > Thrusters > DC > E-series > ERL | ERL130/250T-24V ERL130/250T-48V |
| Main products > Thrusters > DC > E-series > ERV | ERV130/250T-48V ERV130/250T-24V |
| Main products > Thrusters > DC > SR_SRV_SRL | SRVP130/250T-24V SRLP130/250T-24VOBS SRL130/250T-24V SRV130/250T-24V |
-
DNV AiP Thruster retract composite housing SR Ø250 and Ø300
Conformity CertificateEnglishpdf
Retract mechanical
Guide to navigating spare parts
Below you will see the top-level assembly of spare part groupings available to you. If you desire a component within the presented assembly group, click on the name tag below the image to be directed to a detailed spare parts list for that assembly group. If no additional spare parts are available, it means that the current assembly group must be purchased as a whole due to service or installation requirements.
Lifting arm complete SB
DIN 912 - M8 x 50
DIN 127 - A 8
DIN 125 - A 8,4
DIN 985 - M8 x 1,25
Flexible drive shaft

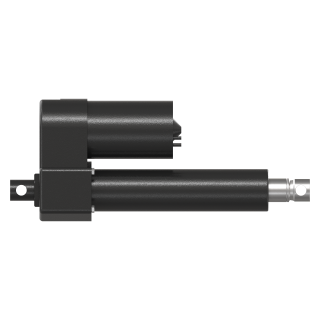

Cable actuator
Sensor cable SR
Kits
-
SM143716 20 1180 A
-
SM170662 SM170662
-
SM901300B 10 2076
-
SM901301 10 2077
-
SM901479 140100

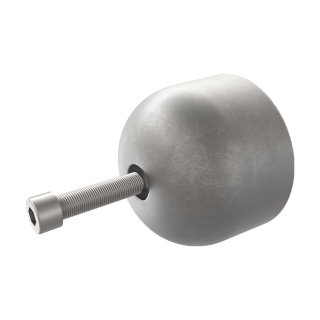

1 Anode kit, aluminium aloy (Al-Zn-In)
Anode - aluminium
Hex socket cap screw

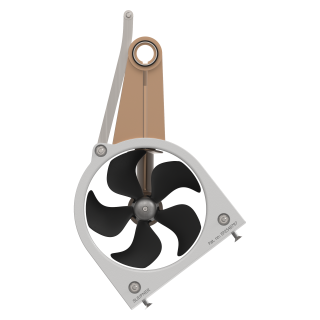

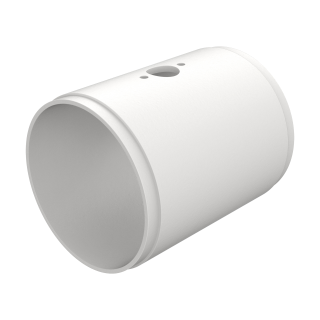

2 Tunnel kit retract Ø250mm T, complete
Split pin
Locking pin
Drive shaft lower link
Bushing for drive pins
O-ring
Sleeve bearing
Thrust washer
Hex head screws
O-ring
Wype Ring

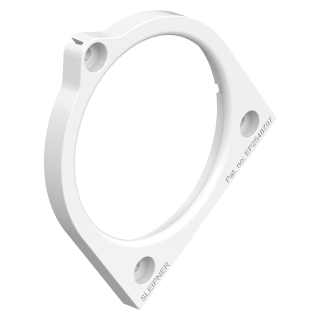

Turn ring
Lifting rod
Tunnel bracket
Sliding band
_3@72dpi.png)
Flat washer without chamfer
Hex lock nut
Hex socket set screw w/ cone point
Hex socket flat countersunk head screw
Hex nut
Split pin
Split pin
Kits
-
SM143716 20 1180 A
-
SM170662 SM170662
-
SM900585A 6 2143
-
SM901300B 10 2076
-
SM901301 10 2077

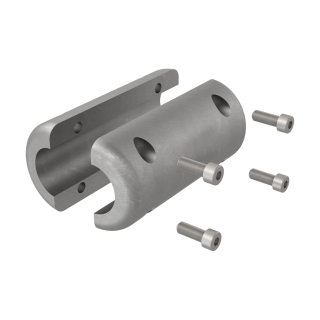

3 Anode rod for SRV thrusters
DIN 934 - M4
Anode SRV
Anode SRV
DIN 912 - M4 x 12

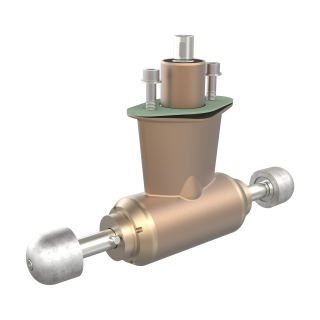

4 Gearleg SE130 w/out propeller
DIN 127 - A 10
DIN 125 - A 10,5
DIN 125 - A 17
DIN 985 - M16x2
Kits
-
SM143716 20 1180 A
-

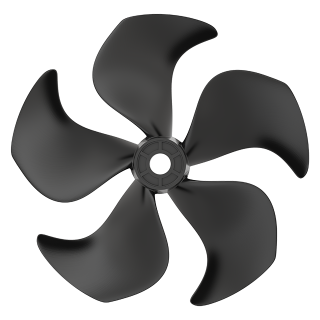

Propeller kit SE130, SE170/210 RH Q-Prop™SP148600
Disclaimer
Sleipner warranties the original spare parts supplied only. The installer alone has responsibility for the installation of the spare parts. Do not attempt to fit replacement parts unless you are competent. If the spare part is fitted incorrectly, Sleipner Group will not be liable for any damage resulting.
The information given in the document was correct at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifications without notice. Consequently, Sleipner Group cannot accept liability for any possible differences between product and document.
-
