Helm pumps
Helm pump, hydraulic steering 43cm³ with flange
Item code: 72063

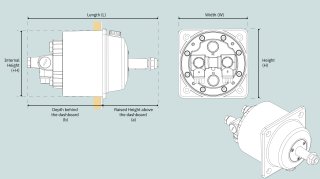

| Dimensions | Value |
|---|---|
| (H) Height | 127mm / 5.00in |
| (+H) Additional Height | 121mm / 4.76in |
| (L) Length | 237mm / 9.33in |
| (W) Width | 127mm / 5.00in |
| (a) | 102mm / 4.02in |
| (b) | 135mm / 5.31in |
| Material | Value |
|---|---|
| Product colour finish | Black |
| Hydraulic | Value |
|---|---|
| Non-return valve | Yes |
| Hydraulic steering | Value |
|---|---|
| Rudder rotations with cylinder 71090 | 5 |
| Pump displacement (ccm) | 43 |
| Helm pump type | with flange |
| Port dimensions BSP A/B | 1/4” |
| Rudder rotations with cylinder 71140 | 8,0 Recommended |
| Oil | Value |
|---|---|
| Oil type specifications | ISO VG15/DIN 51524-3 HVLP |
| Ideal vessel integration | Value |
|---|---|
| Typical vessel class | Commercial vessel, Motor boat, Sail boat |
| Product weight | Value |
|---|---|
| Net weight | 3.012kg / 6.64lbs |
-
