Cylinders
Hydraulic cylinder SP60
Item code: 71060

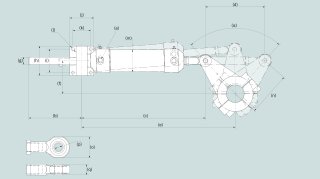

| Dimensions | Value |
|---|---|
| (a) | 1/4" |
| (b) | 179.5mm / 7in |
| (c) | 363.5mm / 14in |
| (d) | "200" |
| (g) | 16mm / 0in |
| (h) | 70mm / 2in |
| (i) | 52mm / 2in |
| (j) | 60mm / 2in |
| (k) | 44mm / 1in |
| (l) | 8.5mm / 0in |
| (m) | 38mm / 1in |
| (o) | 32mm / 1in |
| (p) | 12mm / 0in |
| (q) | 16mm / 0in |
| α | 84 |
| Extra custom dimensions | Value |
|---|---|
| e1 (with 150mm tiller arm) | 464 |
| n2 (with 180mm tiller arm) | 180 |
| f2 (with 180mm tiller arm) | 147.5 |
| e2 (with 180mm tiller arm) | 467 |
| n1 (with 150mm tiller arm) | 150 |
| f1 (with 150mm tiller arm) | 111.5 |
| Hydraulic steering | Value |
|---|---|
| Cylinder volume (ccm) | 125 |
| Max rudder torque (bar) with 180mm tiller arm | 55 |
| Recommended hose diameter (inside) | 3/8" |
| Max rudder torque (bar) with 150mm tiller arm | 45 |
| Working pressure (bar) | 50 |
| Oil | Value |
|---|---|
| Oil type specifications | ISO-VG-15, DIN 51524-3 HVLP |
| Ideal vessel integration | Value |
|---|---|
| Typical vessel class | Motor boat, Sail boat |
-
