SPS80E AC Electric Stabilizer Actuator
230/400VAC
-
ANY SPEED
Vector Fins™ is the only top-performing stabilizer system for both cruising and at anchor use. The fins’ concave shape creates multilateral force direction improving the stationary positioning of a vessel while at anchor. The uniqueness of the design also becomes evident while underway as it improves in effectiveness as speed increases. Sea trials have proven that Vector Fins™ are up to 50% more efficient at anchor and capable of reducing the uncomfortable rolling motions of the vessel by up to 95% while cruising.
-
360° INSTALLATION
Designed to fit in small and challenging installation areas, the Vector Fins™ unique cone shaft design allows you to utilize the space onboard to install the actuators in any direction and insert the fins into the position you require.
Item code: SPS80E
As the driving force behind Sleipner’s Vector Fins™ for yachts in the 29–38 meter range, the SPS80E actuator provides powerful, real-time stabilization to reduce roll and optimize onboard comfort. Renowned for its compactness and energy efficiency, the SPS80E integrates effortlessly with yacht systems, delivering unmatched control with minimal space requirements.
Powered by 230V or 400V (three-phase) AC, it continuously adjusts fin positioning using advanced algorithms to ensure stability in any sea conditions, making it an ideal solution for large yachts.
Properties
ANY SPEED
Vector Fins™ is the only top-performing stabilizer system for both cruising and at anchor use. The fins’ concave shape creates multilateral force direction improving the stationary positioning of a vessel while at anchor. The uniqueness of the design also becomes evident while underway as it improves in effectiveness as speed increases. Sea trials have proven that Vector Fins™ are up to 50% more efficient at anchor and capable of reducing the uncomfortable rolling motions of the vessel by up to 95% while cruising.
360° INSTALLATION
Designed to fit in small and challenging installation areas, the Vector Fins™ unique cone shaft design allows you to utilize the space onboard to install the actuators in any direction and insert the fins into the position you require.
| Main power | Value |
|---|---|
| Power supply | 400V AC 3ϕ, 230V AC 3ϕ |
| Protection standards | Value |
|---|---|
| Ingress protection | IP67 |
| Electric fin actuator power consumption | Value |
|---|---|
| Peak power per actuator kW | 8 |
| Features | Value |
|---|---|
| 360° Installation | Yes |
| Any Speed | Yes |
| Patented noise reduction | Yes |
| Industry leading efficiency | Yes |
| Plug and play signal cables | Yes |
| 4-fin configuration available | Yes |
| Dynamic position mode | Yes |
| Eco mode | Yes |
| Dock mode | Yes |
| On water service possible | Yes |
| Instant on | Yes |
| Coordinated turn control | Yes |

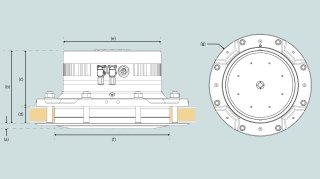

| Dimensions | Value |
|---|---|
| (a) | 20mm / 0in |
| (b) | 349mm / 13in |
| (c) | 247mm / 9in |
| (d) | 105mm / 4in |
| ØE | 475mm / 18in |
| ØF | 537mm / 21in |
| ØG | 705mm / 27in |
| Ideal vessel integration | Value |
|---|---|
| Typical vessel size 4-fin configuration | 45-60 |
| Typical vessel class | Motor boat, Commercial vessel |
| Typical vessel size | 29-38m / 95-124ft |
| Product weight | Value |
|---|---|
| Net weight | 296kg / 652lbs |
-
Installation Manual, eVision Stabilizer (SPS60E, SPS80E)
Installation ManualEnglishpdf -
Brochure Electric Vector Fins
Product catalogue & brochuresEnglishpdf -
PDF.file SPS80E-V4-26 Vector Fin - Stabilizatore
Technical drawingEnglishpdf -
Design and Installation Planning Guide for eVision Stabilizers
Sales Documentation, Marketing DocumentationEnglishpdf -
User Manual, SPS-E
User ManualEnglishpdf -
User Manual, Electric Stabilizers
User ManualEnglishpdf -
STP.file SPS80E V3-23 Starboard - simplified
CAD FileEnglishstp -
STP.file SPS80E V3-23 Port - simplified
CAD FileEnglishstp -
STP.file SPS80E V4-21HS Portboard - simplified
CAD FileEnglishstp -
STP.file SPS80E V4-21HS Starboard - simplified
CAD FileEnglishstp -
STP.file SPS80E V4-26 Portboard - simplified
CAD FileEnglishstp -
STP.file SPS80E V4-26 Starboard - simplified
CAD FileEnglishstp
SPS80E AC Electric Stabilizer Actuator
Guide to navigating spare parts
Below you will see the top-level assembly of spare part groupings available to you. If you desire a component within the presented assembly group, click on the name tag below the image to be directed to a detailed spare parts list for that assembly group. If no additional spare parts are available, it means that the current assembly group must be purchased as a whole due to service or installation requirements.
1 Electric Drive unit SPS80E/SPS90E
DIN 912 - M3 x 6mm A2
Position indicator protection ring
O-ring
Position indicator cover
Position indicator arrow
DIN 7991 - M6x25 A4
Breathable vent M12x1,5
Encoder cable kit
Encoder Multiturn SE70
O-ring
Position indicator shaft
DIN 912 - M10 x 50 A2
Nord-lock M10 A4
DIN 471 - 17x1 C 75 S
DIN 625 SKF -6203
KMT 4
Connector
Connector
2 Gear Drive unit SPS80E
DIN 912 - M10 x 60
Harmonic Drive HFUC80 - 80 ratio (Matr. no.1060864 (PL))
DIN 3771 - 284 x 3 - FKM 75-80
DIN 912 - M10 x 40mm A2
Nord-lock M10
O-ring
DIN 912 - M16 x 45mm 12.9
DIN 934 - M20
DIN 128 - A20
Emergency lock sticker
M24 Hexagon socket countersunk screw
SPSE Ground Bond Wire M10 L=150
Oil plug
BSP gasket
DIN 908 w/ magnet
Lip seal Ø280x290x4,2 SPU
Double lip seal Ø280x295x10,8 SPU
O-ring
O-ring
DIN 912 - M10 x 45 A4
Disclaimer
Sleipner warranties the original spare parts supplied only. The installer alone has responsibility for the installation of the spare parts. Do not attempt to fit replacement parts unless you are competent. If the spare part is fitted incorrectly, Sleipner Group will not be liable for any damage resulting.
The information given in the document was correct at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifications without notice. Consequently, Sleipner Group cannot accept liability for any possible differences between product and document.
Typical average power consumption
At anchor complete system (both actuators together)
| Maximum | Medium to big waves | Small to medium waves | |
|---|---|---|---|
| Roll Time | 100% stabilisation effort(kW) | 66% stabilisation effort(kW) | 33% stabilisation effort(kW) |
| 4.0sec | 5.86 | 2.59 | 0.46 |
| 4.5sec | 5.56 | 2.68 | 0.48 |
| 5.0sec | 4.89 | 2.56 | 0.48 |
| 5.5sec | 4.48 | 2.36 | 0.48 |
| 6.0sec | 4.11 | 2.17 | 0.49 |
| Maximum | Medium to big waves | Small to medium waves | |
|---|---|---|---|
| Roll Time | 100% stabilisation effort(kW) | 66% stabilisation effort(kW) | 33% stabilisation effort(kW) |
| 3.5sec | 6.4 | 2.4 | 0.47 |
| 4.0sec | 6.3 | 2.5 | 0.47 |
| 4.5sec | 6 | 2.6 | 0.47 |
| 5.0sec | 5.3 | 2.6 | 0.47 |
| 5.5sec | 4.9 | 2.4 | 0.47 |
| 6.0sec | 4.5 | 2.3 | 0.47 |
| Maximum | Medium to big waves | Small to medium waves | |
|---|---|---|---|
| Roll Time | 100% stabilisation effort(kW) | 66% stabilisation effort(kW) | 33% stabilisation effort(kW) |
| 3.5sec | 7.04 | 2.68 | 0.47 |
| 4.0sec | 6.76 | 2.73 | 0.46 |
| 4.5sec | 6.32 | 2.84 | 0.48 |
| 5.0sec | 5.70 | 2.81 | 0.48 |
| 5.5sec | 5.28 | 2.66 | 0.49 |
| 6.0sec | 4.83 | 2.44 | 0.49 |
| 6.5sec | 4.59 | 2.28 | 0.48 |
Peak power per actuator: 8.0kW
Notice:
This depends on many factors, including the boat's roll period, the size of the stabilizer system for the boat, and the sea state. Typically, small to medium waves are the most common conditions to anchor comfortably in.
-
